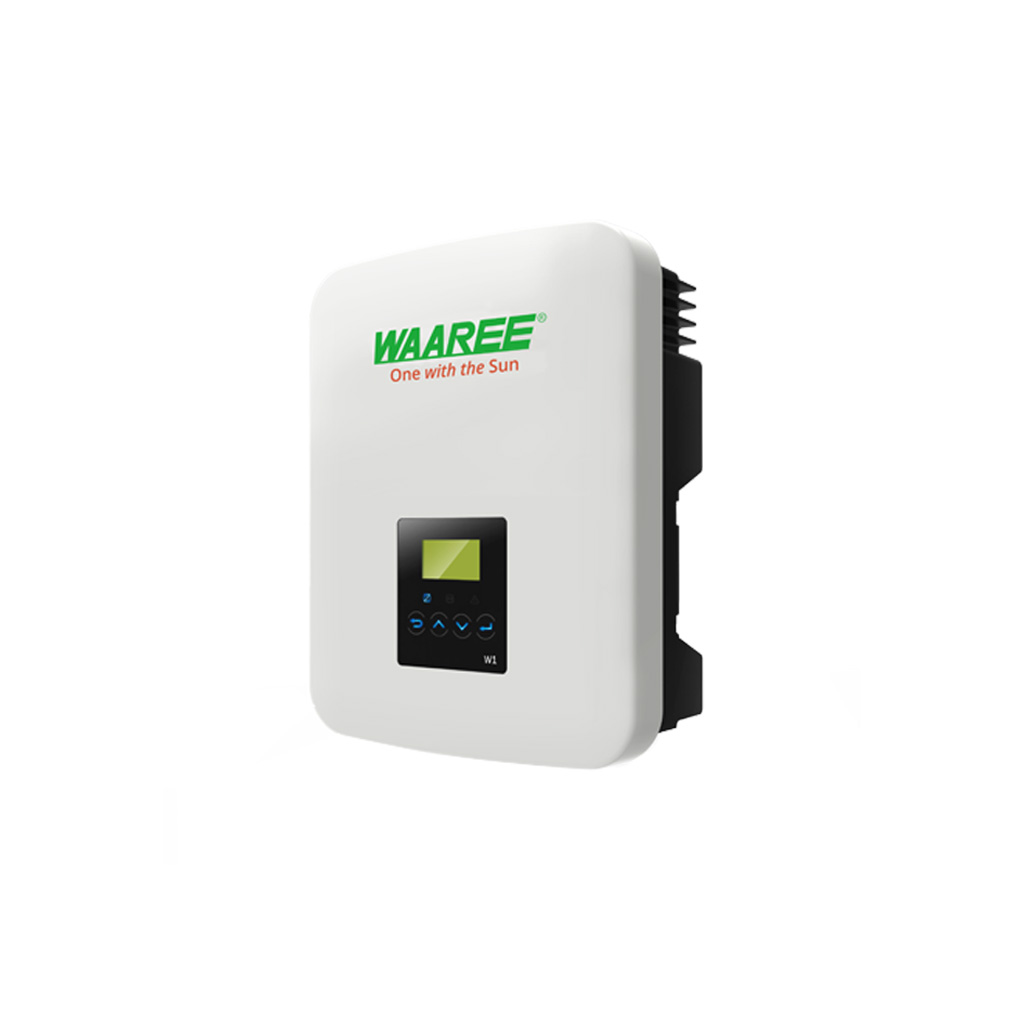

Waaree W1-3K-G3 Single Phase On-Grid Inverter

SKU: 4058

Special Price ₹ 25,400.00


Approx Price including GST @ 5%

Available on Request




Product Description


  • Maximum Efficiency upto 97.1%
  • Early Start at 60V and Late cut-off
  • Compact & Light weight
  • Fanless, Low Maintainence
  • IP 65 for outdoor use
  • Built-in DC Switch and Wifi
  • Multiple layer Safety protection

PV String Input data

Model W1-3K-G3
Max. DC Input Power (W) 4500
Max. DC Input Voltage (V) 550
MPPT Range (V) 50-550V
Start-up Voltage (V) 70
MPPT Range for full Load (V) 300-500
Nominal DC Input Voltage (V) 360
Max. Input Current (A) 12
Max. Short Current (A) 15
No. of MPPT 1
No. of Input String per Tracker 1

AC Output Data

Nominal Output Power (W) 3300
Max. Output Apparent Power (VA) 3300
Nominal Output Voltage (V) 220/230
Nominal Output Frequency (Hz) 50/60
Max. Output Current  (A) 16
Output Power Factor  ~1 (Adjustable from 0.8 leading to 0.8 lagging)
Output THDi (@Nominal Output) <3%

Efficiency

Max. Efficiency 97.5%
Euro Efficiency 96.9%

Protection

Anti-islanding Protection Integrated
Input Reverse Polarity Protection Integrated
SPDs AC & DC side Integrated
Residual Current Monitoring Unit Integrated
Output Over Current Protection  Integrated
Output Short Protection Integrated
Output Over Voltage Protection  Integrated

General Data

Operating Temprature Range (°C) -25 ~ 60
Relative Humidity  0 ~ 95%
Operating Altitude (m) < 4000
Cooling  Natural Convection
Noise (dB) <25
User Interface LCD & LED
Communication RS485 / WiFi / GPRS
Weigth (KG) 5.5
Size (Width*Height*Depth mm) 315*260*118
Protection Degree IP65
Night Self Consumption (W) <1
Topology Transformerless
