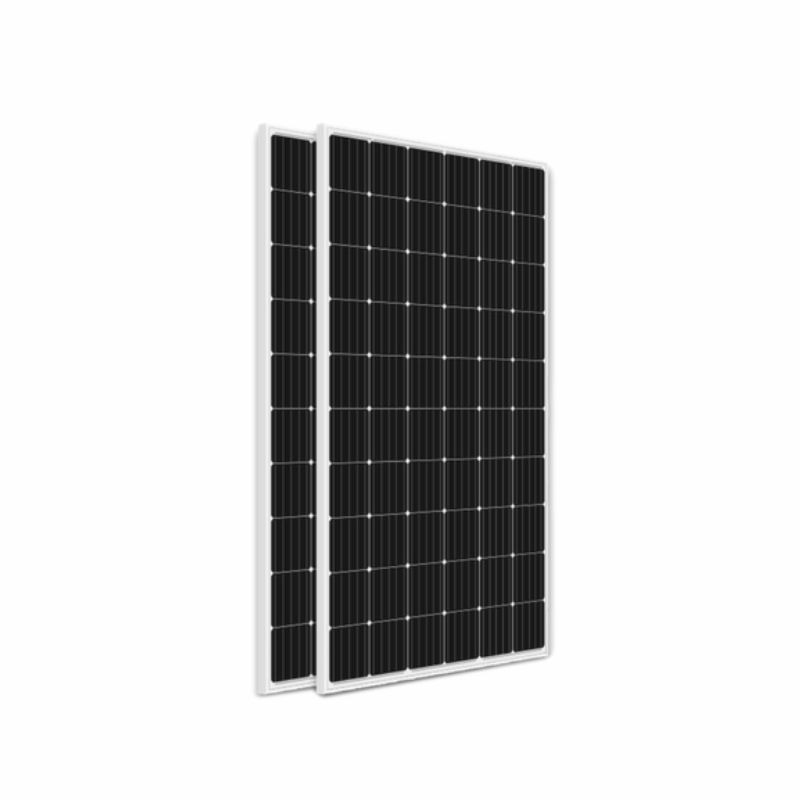

Waaree Solar Panel 370 Watt - 24 Volt Mono PERC Module (Pack of 2)
SKU: 4258
Special Price ₹ 18,810.00
Available on Request
Product Description
- Superior Module Efficiency as per International Benchmarks
- Positive Power Tolerance 0/+ 5W
- PID Free Modules with long term reliability
- Glass with Anti Reflective Coating Improves light transmission
- Salt mist, Ammonia, Blowing Sand and Hail Resistant
- Sustain Heavy Wind & Snow loads (2400 Pa & 5400 Pa)
- System voltage: 1500VDC to reduce the BOS cost
- Modules binned by current to improve system performance
Electrical Characteristics
| MODELS | WSM-370 |
| Pmax (W) | 370 |
| Vmp (V) | 39.30 |
| Imp (A) | 9.42 |
| Isc (A) | 9.80 |
| Voc (V) | 48.05 |
| Module Eff. (%) | 19.07 |
Mechanical Characteristics
| Length x Width x Thickness (L x W x T) - mm | 1960 x 990 x 40 |
| Mounting Holes Pitch (Y) – mm | 1060 |
| Mounting Holes Pitch (X) – mm | 942 |
| Weight (kg) | 22.5 |
| Solar Cells per Module (Units) / Arrangement | 72 / (12*6) |
| Solar Cell Type | Monocrystalline |
| Front Cover (Material / Thickness) | Tempered & Low Iron Glass, 3.2/4mm |
| Encapsulate | Ethylene Vinyl Acetate |
| Frame Material | Anodized Aluminum Alloy |
| Junction Box | IP67 rated enclosure with 3 bypass diodes Rated voltage : 1500VDC |
| Connector | MC4 compatible or IP67 rated |
| Cable | 4 mm cross section, 1200 mm long |
| Fire safety class | C |
| Application class | A |
| Safety class | II |
Temperature Coefficients And Operating Conditions
| Temperature coefficient of Current α (%/°C) | 0.0039 |
| Temperature coefficient of Voltage ß (%/°C) | -0.2627 |
| Temperature coefficient of Power γ (%/°C) | -0.3739 |
| NOCT (°C) | 46 + 2 |
| Operating Temperature Range (°C) | -40 to 85 |
| Maximum System Voltage (IEC& UL) | 1500VDC |
