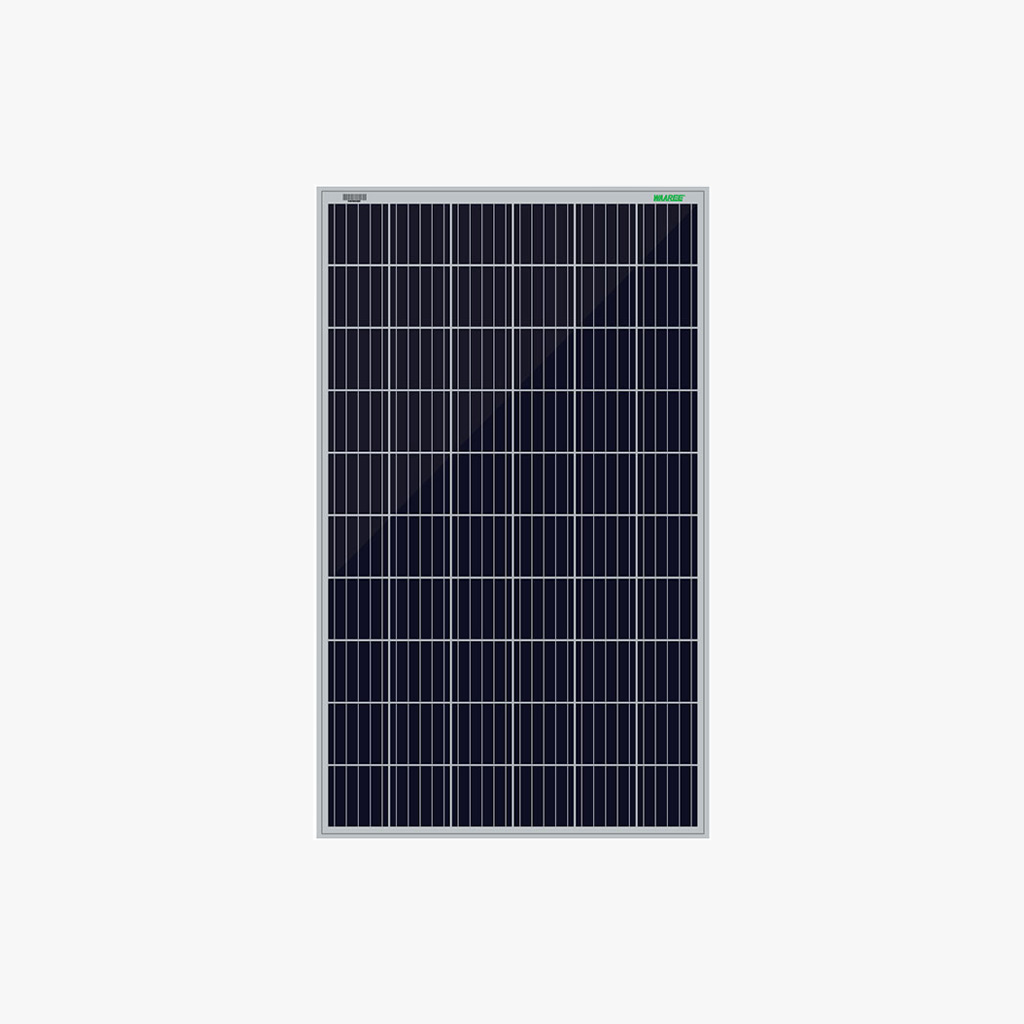

Waaree 60Wp Polycrystalline Solar PV Module

SKU: 3741

Special Price ₹ 3,330.00


Approx Price including GST @ 5%

Available on Request




Product Description


  • Superior module efficiency as per international benchmarks
  • High durability
  • salt mist resistant
  • Excellent performance in low light

APPLICATIONS

• Ideal for On/Off-Grid applications

• Rural Electrication

• Off-grid solar system

• Mobile solar system

• Solar street light & lantern applications

ELECTRICAL CHARACTERISTICS

Model WS-100 /12V
Nominal Maximum Power, Pm (W)* 100
Open Circuit Voltage, Voc (V)* 21.97
Short Circuit Current, Isc (A)* 6.07
Voltage at Maximum Power, Vmp (V)* 17.47
Current at Maximum Power, Imp (A)* 5.73
Maximum System Voltage (V) 600/1000
Module Efciency (%) 14.31
Maximum Series Fuse Rating (A) 12
Rated Voltage (V dc) 17.47
Rated Current (A dc) 5.73

MECHANICAL CHARACTERISTICS

Model WS-100 /12V
LengthxWidthxThickness (LxWxT)-mm 1035x 675x35
Mounting holes pitch (Y)-mm 545
Mounting holes pitch (X)-mm 633
Weight (kg) 9
Cells per module (Units)/Arrangement 36/ (9x4)
Cell Type Polycrystalline
Front Cover (Material/Thickness) Tempered & Low Iron Glass, 3.2 / 4.0 mm
Encapsulate Ethylene Vinyl Acetate
Frame Anodized Aluminium Alloy
Junction Box (Protection degree/ Material) IP 65 rated/ Weatherproof PPO enclosure with bypass diodes
Connector Optional
Cable Optional
Fire Safety Class C
Application Class A
Safety Class II
