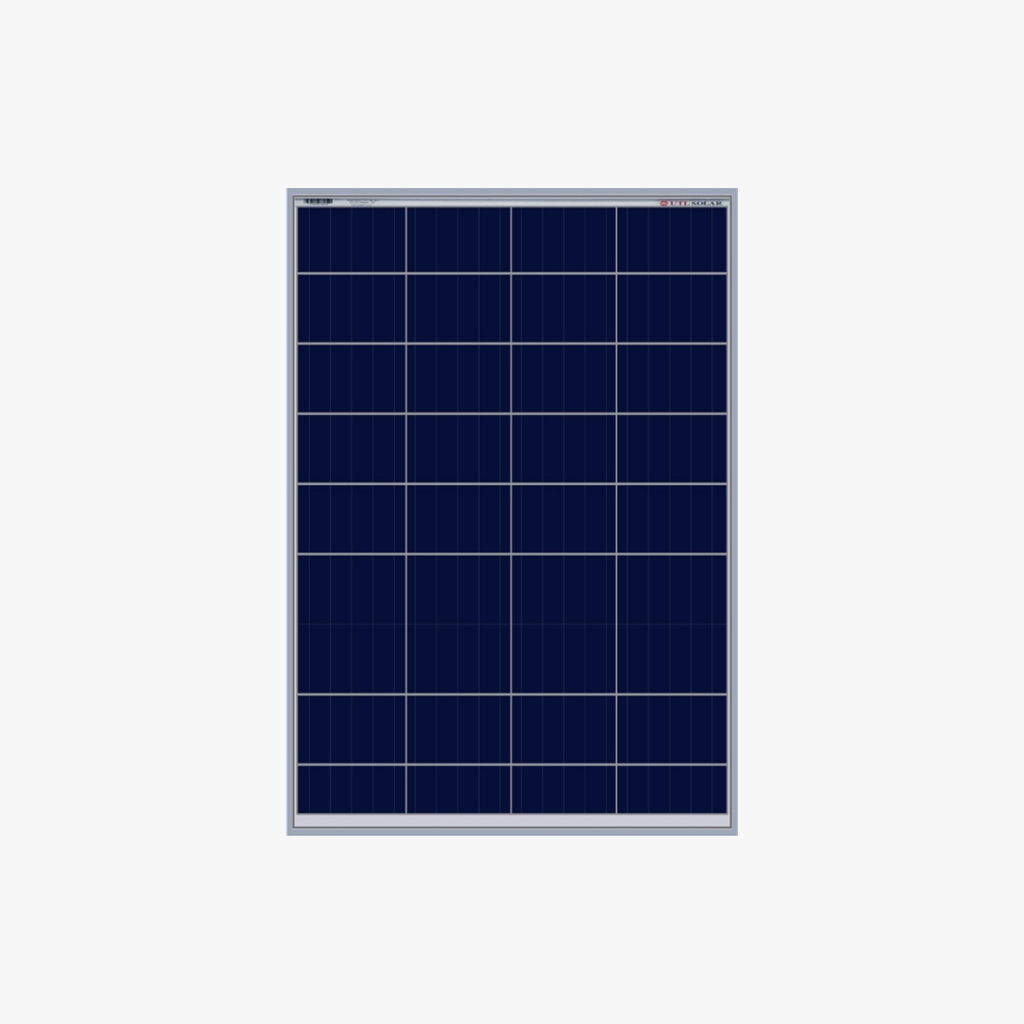

UTL 265 Watt Polycrystalline Solar PV Module
SKU: 3963
Special Price ₹ 6,080.00
Available on Request
Product Description
Unique Features of 265watt Panel
- Excellent power generation even in low light irradiation
- 2 mm toughened textured glass for front protection.
- Highly efficient solar panels with more than 18% efficiency.
- Available in various power ratings with 36/72 cells.
- Superior performance in all atmospheres.
- Anodized aluminium alloy frame for protection.
PARTICULARS | DESCRIPTION |
Solar Panel Rating | 265 Watt |
Panel Type | Polycrystalline |
Short circuit current | 8.95 ampere |
Operating voltage at Pmax VMP | 19 volt |
Operating current Imp | 8.65 ampere |
Open circuit voltage VOC | 21.6 volt |
Module efficiency | >16 % |
Operating temperature | -40 °C to 80 °C |
Maximum system voltage | 100 V |
Power tolerance | 3% |
Fill factor | 77% |
Standard test condition | Irradiance of 1000 W/m square, spectrum AM 1.5 and cells temperature of 25 °C |
Max. series fuse rating | 10 |
No. of Busbar | 4BB |
No. of cells | 36 |
Cell arrangement | 9*4 |
Module dimension | 1490*670*35 mm |
Weight | 12.5 Kg |
Front side junction box | IP65 |
Frame | Anodized Aluminium Alloy |
Front glass | 3.2mm Toughened Textured |
Cables and connectors | 4mm,AWG 1000V/mc4 connectors |
Warranty | 25 Years Performance & 10 Year Product Warranty |
