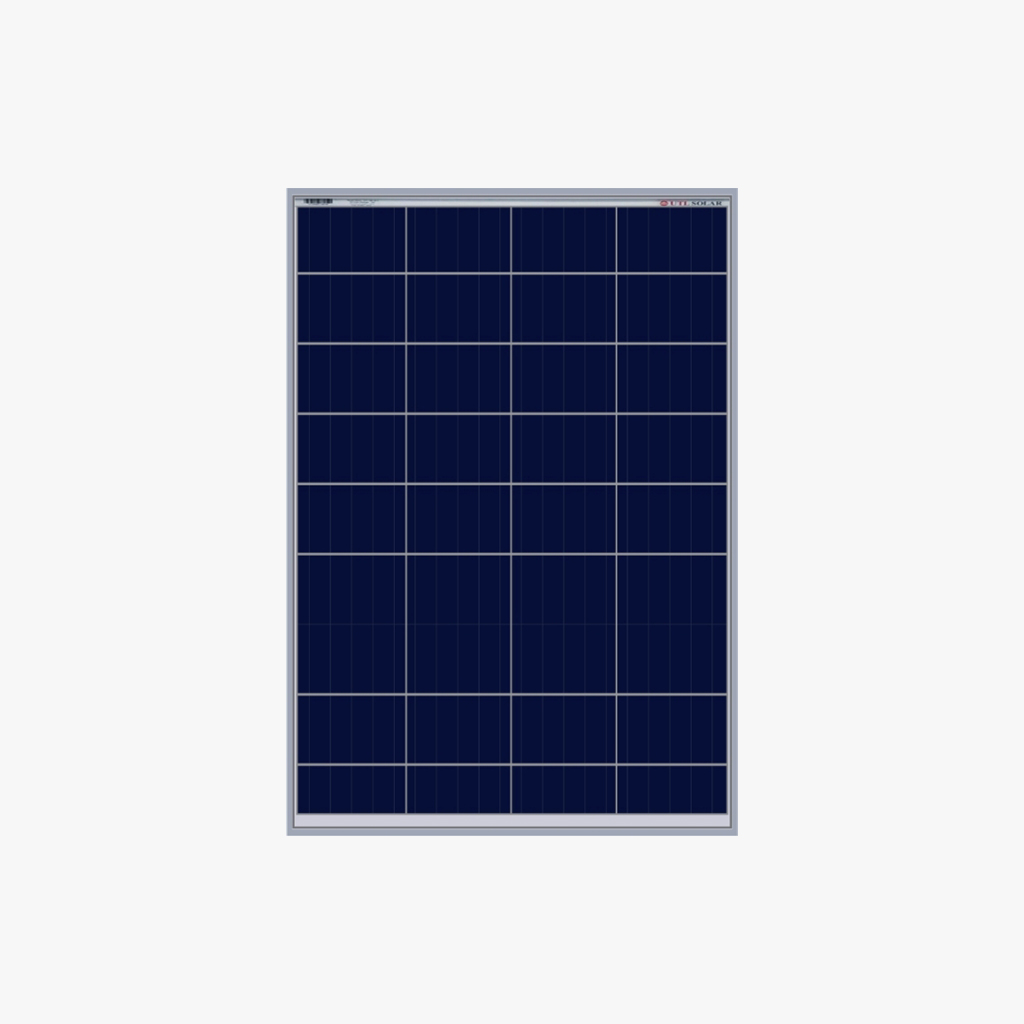

Unique Features of 100watt Panel

• Excellent power generation even in low light irradiation
• 2 mm toughened textured glass for front protection.
• Highly efficient solar panels with more than 18% efficiency.
• Available in various power ratings with 36/72 cells.
• Superior performance in all atmospheres.
• Anodized aluminium alloy frame for protection.

PARTICULARS	DESCRIPTION
Solar Panel Rating	100 Watt
Panel Type	Polycrystalline
Short circuit current	6.3 ampere
Operating voltage at Pmax VMP	17.9 volt
Operating current Imp	5.7 ampere
Open circuit voltage VOC	21.6 volt
Module efficiency	>15 %
Operating temperature	-40 °C to 80 °C
Maximum system voltage	100 V
Power tolerance	3%
Fill factor	77%
Standard test condition	Irradiance of 1000 W/m square, spectrum AM 1.5 and cells temperature of 25 °C
Max. series fuse rating	10
No. of Busbar	4BB
No. of cells	36
Cell arrangement	9*4
Module dimension	1006*666*35 mm
Weight	10.5 Kg
Front side junction box	IP65
Frame	Anodized Aluminium Alloy
Front glass	3.2mm Toughened Textured
Cables and connectors	4mm,AWG 1000V/mc4 connectors
Warranty	25 Years Performance & 10 Year Product Warranty
