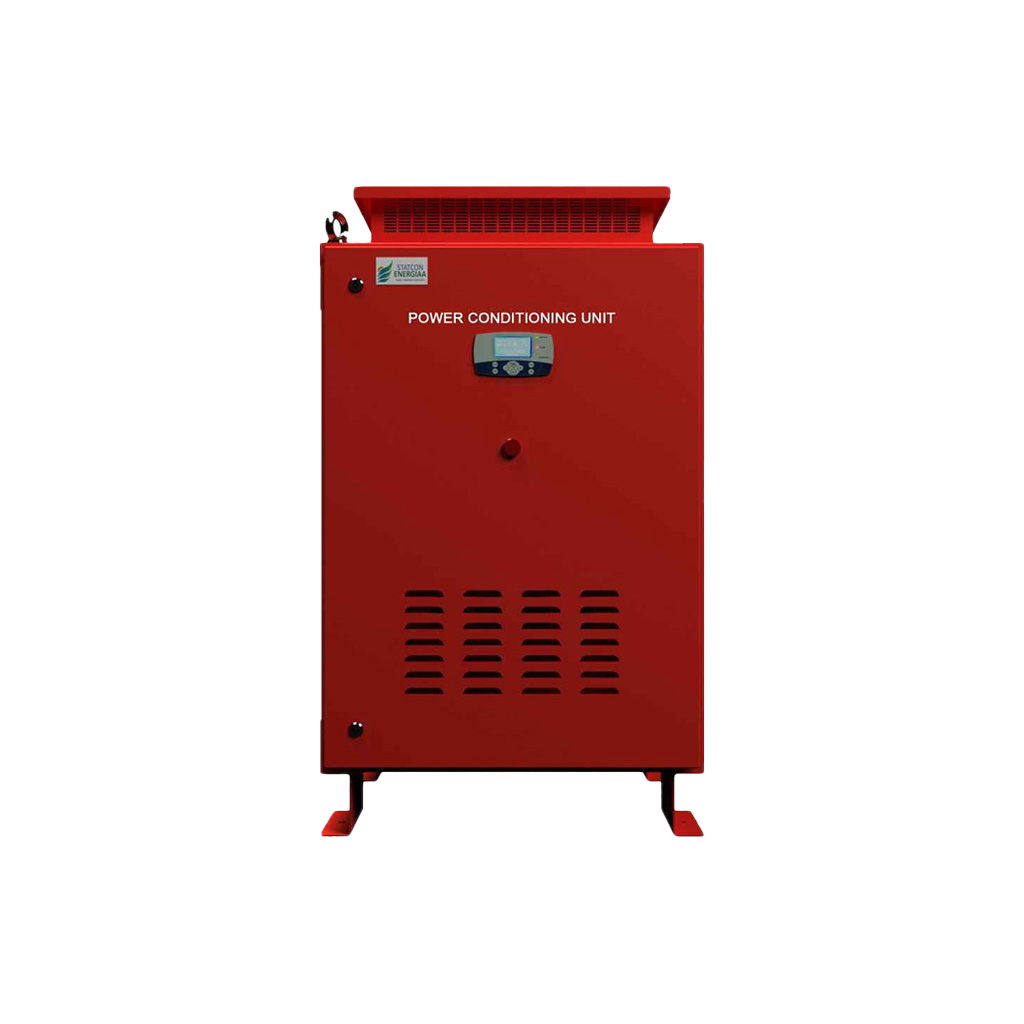

Statcon 10 KVA/ 48V Three phase MPPT based Hybrid PCU

Statcon 10 KVA/ 48V Three phase MPPT based Hybrid PCU

Brand: Statcon | Category: Inverter

₹ 198150

Approx Price Excluding GST @ 12%

Available on Request
Product Details

  • Phase: 3 Phase
  • Maximum Panel Voltage: 600V
  • Weight (kg): 307 Kg
  • Operating Temprature: 0 to 50 Degree C
  • Special Features: It Protects Mains Under / Over Voltage, Battery Under Voltage, Short Circuit Protection, Surge Protection, Anti-Islanding, Display Shows Mains Voltage & Current, PV-V, PV-KWhr, Ambient Temprature
  • Protection: IP 31

Adaptive algorithm for high efficiency MPPT Solar Charger, High efficiency DC-DC power conversion, Low current distortion and high PF during charging mode, Multi stage battery charging including temperature compensation, Fast changeover time, High inrush current, Current sharing between Solar & AC when present, Auto DG start-stop as per requirement, Digital display with keypad control, Data logging with storage and GPRS monitoring

Type of Product Solar Hybrid Inverter
Power Rating 10 KW
Input Supply 230V ± 15%
Input Frequency Range(Hz) 50Hz ± 5%
Peak Efficiency(%) >85%
Rated Power Range 7.5-12.5 KVA
Max. Output Voltage  230V ± 15%
Weight (Kg) 307 Kg
Voltage 48V
Output Frequency (Hz) 50Hz ± 5%
