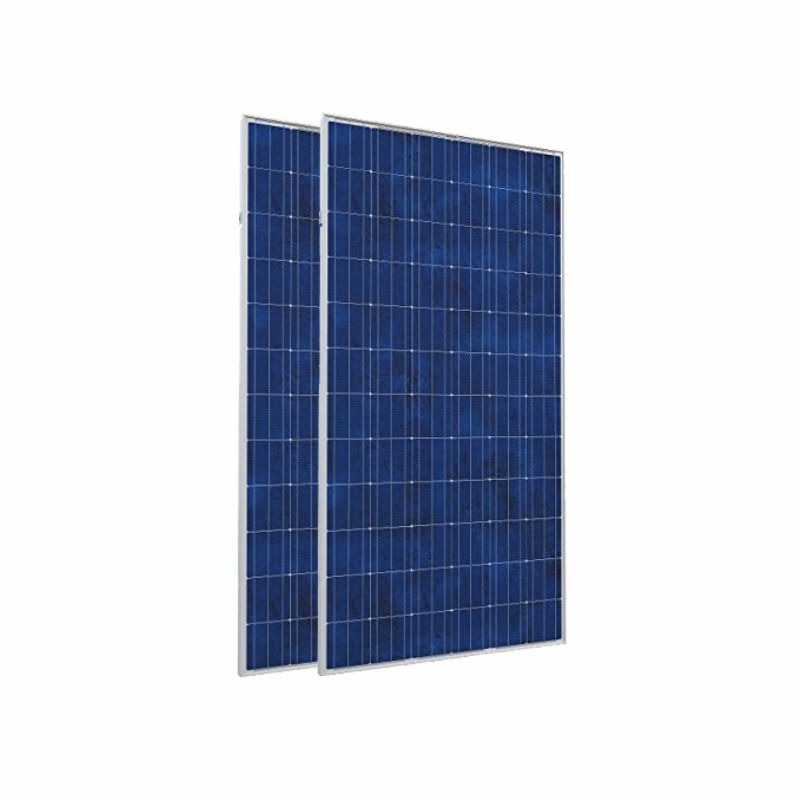

Patanjali Solar Panel 165 Watt - 12 Volt Poly Module (Pack of 2)

Brand: Patanjali | Category: Solar Panel

₹ 14000

Approx Price including GST @ 5%

Available on Request
Product Details

  • Mono and polycrystalline modules
  • Made of high-grade raw material
  • Automated module manufacturing line production
  • Modules range from 5WP to 340 WP
  • 100 % EL tested modules to ensure defect free modules
  • Durable and sturdy build
  • Superior low light irradiation performance – 200W/m²
  • Upto 17.8% efficiency
  • IEC & BIS certified modules
  • 25-year Manufacturer Warranty

MODEL PREL 165W
Peak power, (0~ + 4.99 Wp) Pmax (Wp) 165
Maximum voltage, Vmpp (V) 19.22
Maximum current, lmpp (A) 8.6
Open Circuit Voltage, Voc (V) 23.29
Short circuit current, Isc (A) 9.14
Module efficiency (%) 17.19%
Solar Cells Per Module 36
Length (L) x Width (W) x Thickness (T) 1490x670x35
Weight in Kg 11.2 kg ±  0.500 Kg
Junction Box IP 67 2 Bypass diodes
Cable and Connectors Optional
Application Class Class A (Safety Class II)
Superstrate High Transmittance ARC Glass
Cells 36 Polycrystalline Solar Cut Cells
Cell Encapsulant EVA (Ethylene Vinyl Acetate)
Back Sheet Composite Film
Frame Anodized Aluminium Frame with twin wall profile
Mechanical Load Test 5400 Pa-front : 2400 Pa-back
Maximum Series Fuse Rating 15A
Maximum System Voltage 1000V
Product Warranty 10 Years
