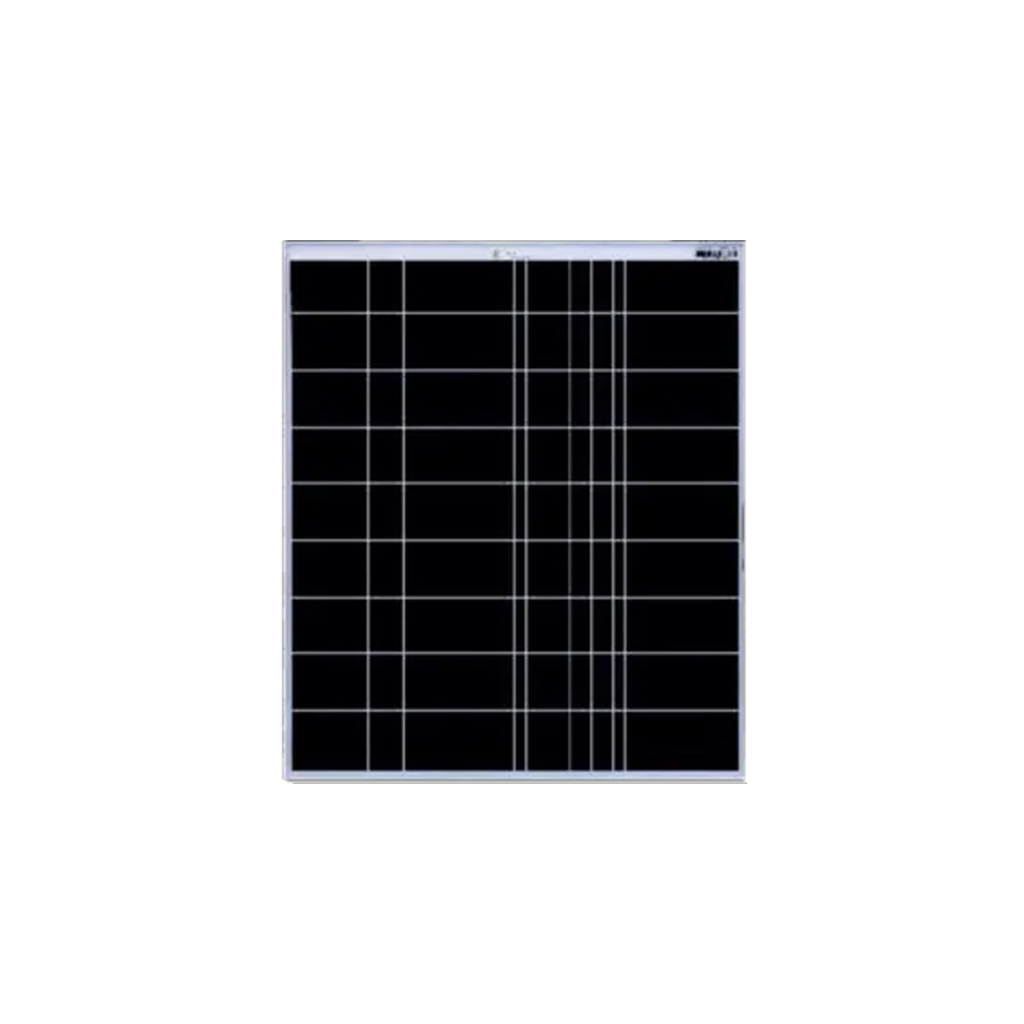

Patanjali Solar Panel 100 Watt - 12 Volt Poly Module (Pack of 2)

Patanjali Solar Panel 100 Watt - 12 Volt Poly Module (Pack of 2)

Brand: Patanjali | Category: Solar Panel

₹ 8850

Approx Price Excluding GST @ 12%

Available on Request
Product Details

  • Mono and polycrystalline modules
  • Made of high-grade raw material
  • Automated module manufacturing line production
  • Modules range from 5WP to 340 WP
  • 100 % EL tested modules to ensure defect free modules
  • Durable and sturdy build
  • Superior low light irradiation performance – 200W/m²
  • Upto 17.8% efficiency
  • IEC & BIS certified modules
  • 25-year Manufacturer Warranty

MODEL PREL 100
Peak power, (0~ + 4.99 Wp) Pmax (Wp) 100
Maximum voltage, Vmpp (V) 18
Maximum current, lmpp (A) 5.57
Open Circuit Voltage, Voc (V) 21.08
Short circuit current, Isc (A) 5.99
Module efficiency (%) 15.46
Solar Cells Per Module 36
Length (L) x Width (W) x Thickness (T) 1010x665x35
Weight in Kg 7.80 kgs
Mounting Pitch (Hole to Hole Distance) 500 mm
Junction Box IP 65/67
Application Class Class A (Safety Class II)
Superstrate High Transmittance ARC Glass
Cells 36 Polycrystalline Solar Cut Cells
Cell Encapsulant EVA (Ethylene Vinyl Acetate)
Back Sheet Composite Film
Frame Anodized Aluminium Frame with twin wall profile
Mechanical Load Test 5400 Pa-front : 2400 Pa-back
Maximum Series Fuse Rating 10A
Maximum System Voltage 600V
