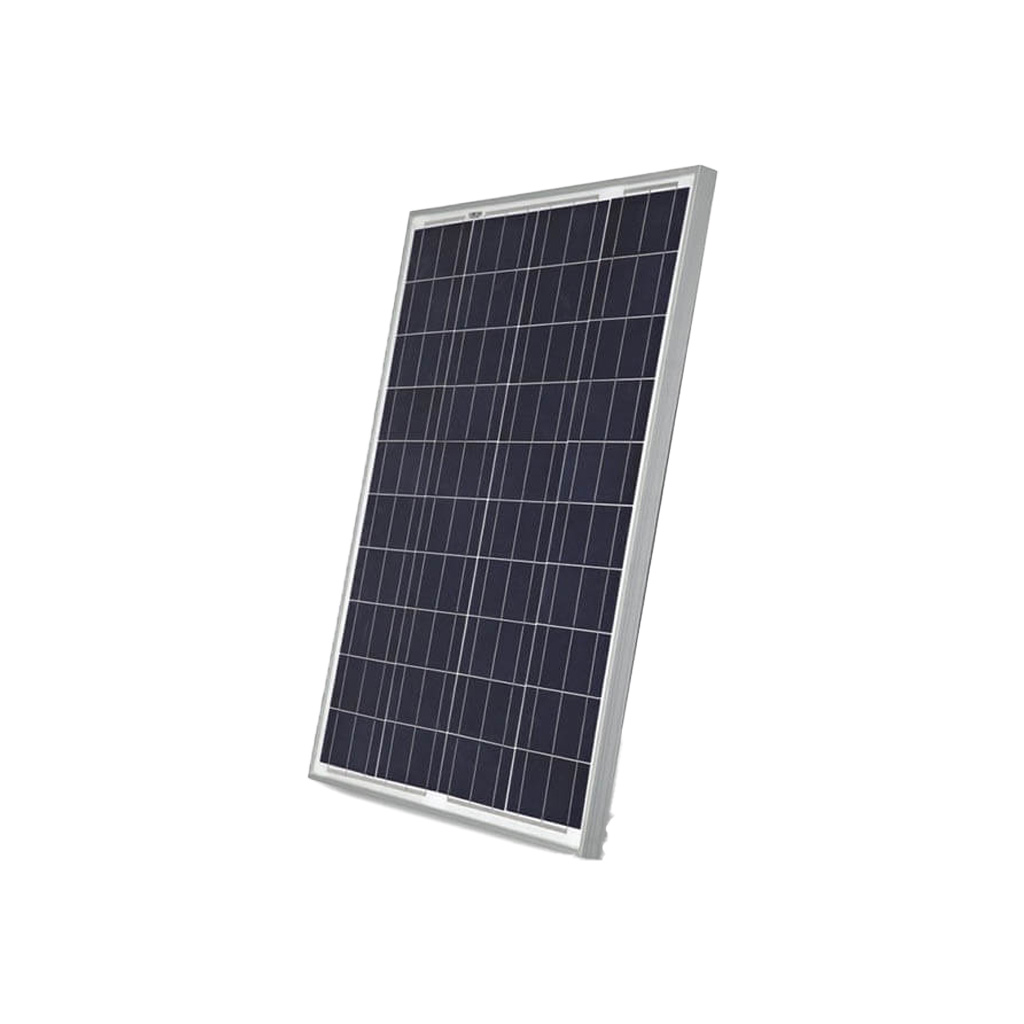

Microtek Solar Panel 250 Watt - 24 Volt Poly Module (Pack of 2)

Brand: Microtek | Category: Solar Panel

₹ 23980

Approx Price including GST @ 5%

Available on Request
Product Details

  • Positive Power Tolerance Modules.

  • High Conversion Efficiency based on Leading Innovative Photo Voltaic Technologies.

  • PID Free Modules with Long Term Reliability.

  • Sustain Heavy Wind and Snow Loads (2400Pa and 5400Pa).

  • Excellent Performance in Low Light.

  • Salt Mist, Ammonia, Blowing Sand and Hail Resistant.

  • Ideal for Off-Grid as well as On-Grid Applications.

  • IP67 rated MC4 Compatible Connectors.

  • EVA Encapsulation and Anti Reflection Coating for better Module Protection.

  • Undergoes Rigorous Quality Control and more than 20 in-house tests, (DH: Damp Heat Test. TC: Thermal Cycling Test. HF: Humidity Freeze Test.).

  • Heavy duty Anodized Aluminum Frames with pre-drilled holes for Quick Installation.

  • Manufactured with Premium Quality Input Materials.

Technical Info

Nominal Maximum Power (Pm) 250Watts/24V
Open Circuit Voltage (Voc) 37.30V
Short Circuit Current (Isc) 8.81A
Voltage at Maximum Power (Vmp) 30.10V
Current at Maximum Power (Imp) 8.36A
Maximum System Voltage 1000V

General Info

Length x Width x Thickness (LxWxT) - mm 1639x991x40
Mounting Holes Pitch (Y) – mm 980
Mounting Holes Pitch (X) – mm 951
Solar Cells per Module (Units) / Arrangement 60 / (10 x 6)
Solar Cell Type Multi Crystalline Silicon
Front Cover (Material / Thickness) Tempered & Low Iron Glass / 3.2mm
Encapsulate Ethylene Vinyl Acetate
Frame Material Anodized Aluminum Alloy
Junction Box IP65 or IP67 Enclosure with Bypass Diodes
Weight 19 kg
