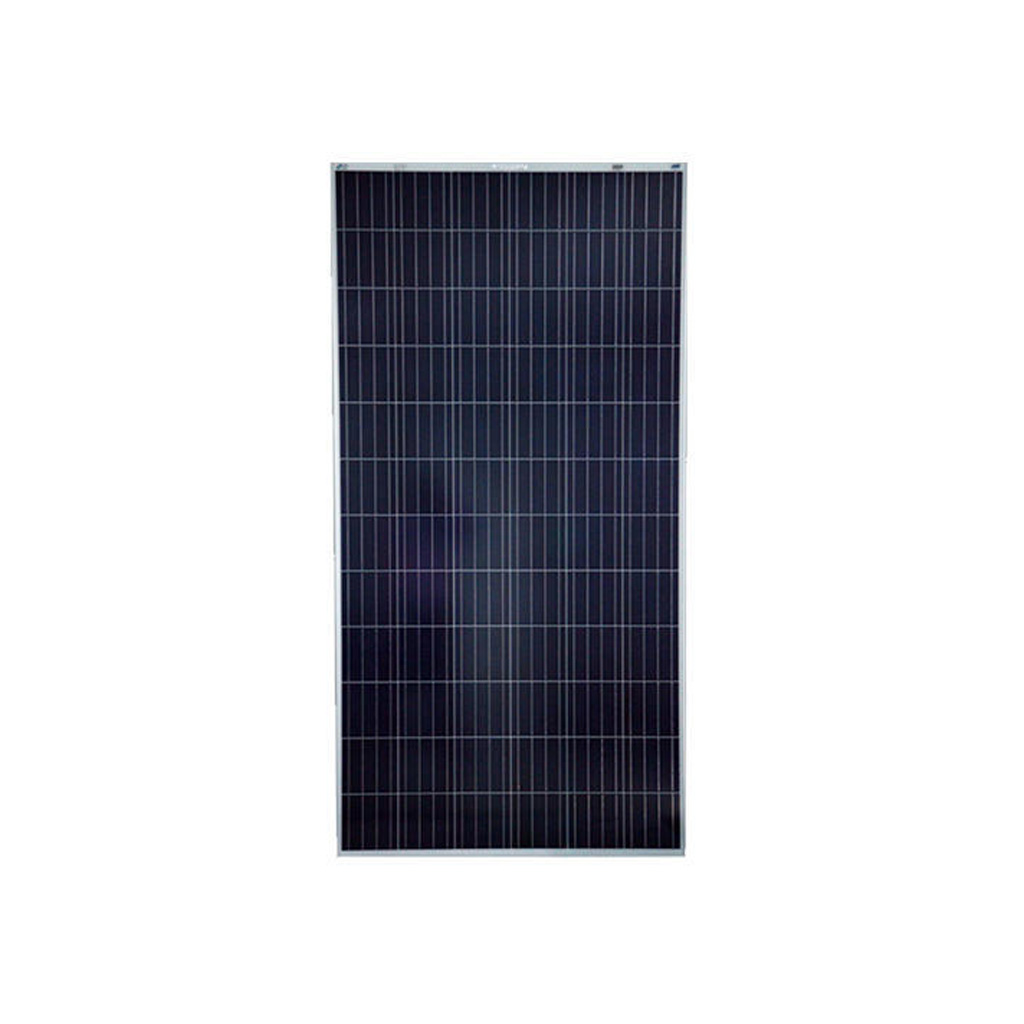

Mehar 150Wp Polycrystalline Solar PV Panel
SKU: 4004
Special Price ₹ 5,460.00
Available on Request
Product Description
- 4 BB/ 5 BB - Higher Output Per Cell & Lower Residual Stress
- Positive Power Tolerance 0/+3%
- Specially Designed For Off-grid and Rooftop Applications
- Extremely Narrow Power Binning Tolerance To Reduce Current Mismatch Loss in Single Response
- Engineered to Provide excellent Low Light Response
- IP 65 Rated Junction Box
- PID Resistant with 100% EI Testing For Long Term Reliability
- HV Testing
- Peel & Gel Content Testing
- Hi Pot Testing
- Wet Leakage Testing
- Hot Spot Testing
- IV Testing
ELECTRICAL DATA
| Peak Power (Pmax) | 150 |
| The voltage at Maximum Power Point (Vmp) | 18.20 |
| Current at Maximum Power Point (Vmp) | 8.25 |
| Open Circuit Voltage (Voc) | 22.15 |
| Short Circuit Current (Isc) | 8.70 |
| Model Efiency (%) | 15.18 |
| Maximum Series Fuse Rating (A) | 12 |
| Limiting Reverse Current (A) | 12 |
| Electrical Pmax. Tolerance % | Positive Tolerance of 0/2.3% |
MECHANICAL PARAMETERS
| Module Dimension (mm) | 1485*665*35 |
| Mounting Hole centre to center Pitch (Yaxises) |
750 |
| Mounting Hole centre to center Pitch (X aises) |
622 ± 1mm |
| Module Weight kgs (APPROX) | 11.3 |
| Module Matrix | 36/9X4 |
| Front Cover |
High Transmitance Tempered & Low Iron Glass with 3.2mm thickness |
| Backsheet | KPE Backsheet |
| Encapsulate | Sunny Side UVT & Backside PID Free (Ethylene Vinyl Acetate) |
| Frame Material | 15-18 Microns Anodised Aluminium |
| Junction Box (Protection Rating/Material) |
15-18 Microns Anodised Aluminium |
TEMPERATURE COEFFICIENTS (TC)
| Tc of Open Circuit Voltage (Voc), ß (%/0C) | -0.31%/ 0C |
| Tc of Open Circuit Current (Isc), a (%/0C) | -0.058%/ 0C |
| Tc of Power (Omax.) (%/0C) | -0.41%/ 0C |
| Maimum System Voltage (V) | 600 V |
| NOCT | 450C±20C |
| Operating Temperature Range | 400C to±850C |
WARRANTY AND CERTIFICATIONS
| Product Warranty** | 10 years |
| Performance Warranty** | Linear power warranty for 25 years with 2.5% for Ist year degradation and 0.67% from year 2 to year 25 |
| Performance Warranty** | IEC - 61215 IEC - 617301, IEC - 617302, MNRE |
