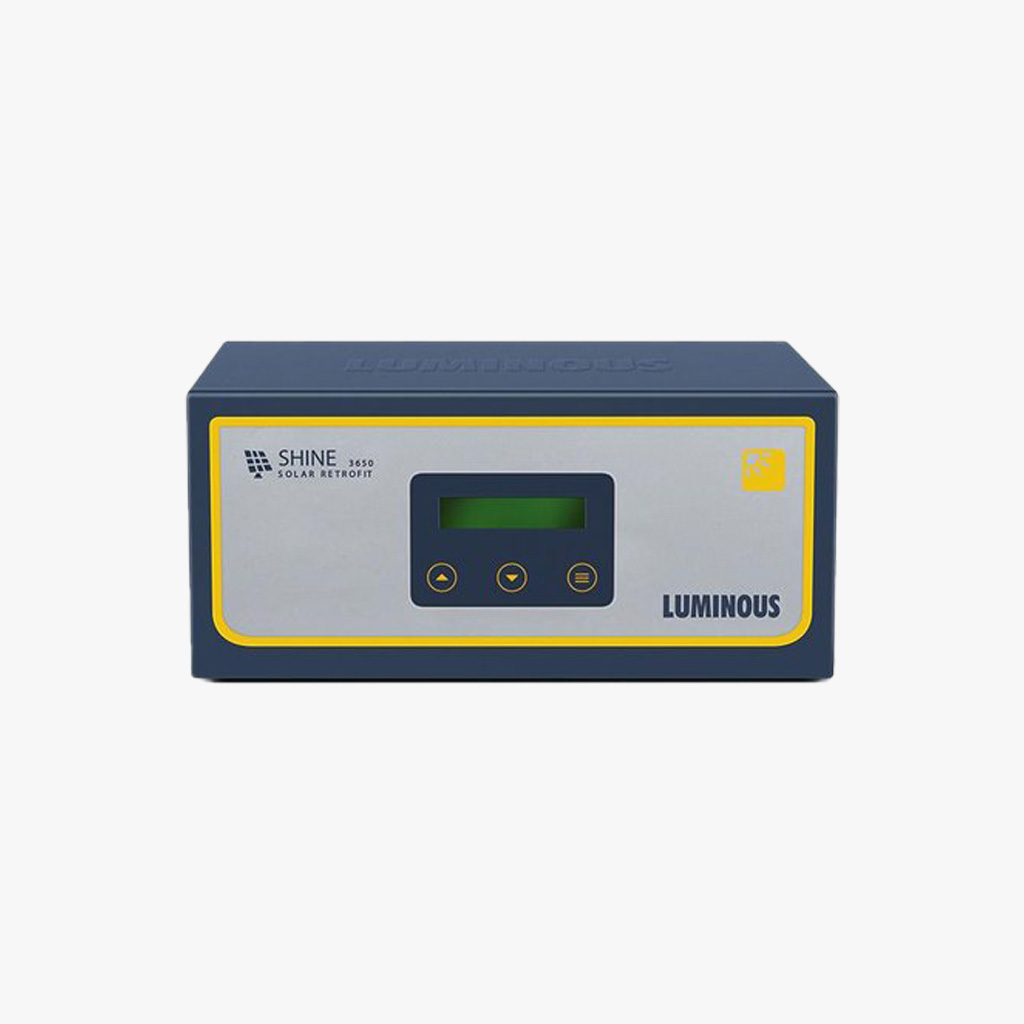

Luminous Shine 3650 Solar Charge Controller

Luminous Shine 3650 Solar Charge Controller

Brand: Luminous | Category: Charge Controller

₹ 5047

Approx Price Excluding GST @ 5%

Available on Request
Product Details

Solar Retrofit is an upgrade of Charge controllers which when connected to any existing UPS converts it into 100% Solar UPS without any change in electrical wiring of existing UPS. It has inbuilt intelligence to maximise use of solar energy to power your appliances.

  • Solar Optimization Technique

Luminous Solar Retrofit uses the Solar Optimization technique to extract minimum power from the mains and instead use solar energy to the maximum, for example if the battery is charged by only 70% till dusk the Solar Retrofit after analyzing the usage pattern will not charge the battery through the mains but will wait until dawn to do so, hence saving the electricity bill and optimizing the use of ecofriendly solar energy.

  • LCD Display

A user friendly LCD that displays important information like battery Charging Status, Charging Source, Total units savings etc.

  • MCB Protection

World class MCB ensures your UPS and connected loads stay protected from short circuits.

  • Four Stage Charging

The Solar Retrofit supports 4-stage smart charging to ensure fast, safe & efficient charging and longer battery life.

Model Shine 3650
Range Name (Solar) Retrofit
VA Rating 50A@24V/36V
Warranty 12 months
Net weight (kg.) 3 kg
No. of 12V Batteries in Series upto 3
Technology (Solar) With Battery
Max. supported panel power (Wp) 1700Wp@24V, 2500Wp@36V
Input Voltage Range (Voc) 38-55(24V), 57-75(36V)
Contents of Pack 1 N Charge Controller, 1 N Manual
Product Dimensions (L*W*H) 28.0*20.5*12.9 CM
Application Area Homes and Small Shops
