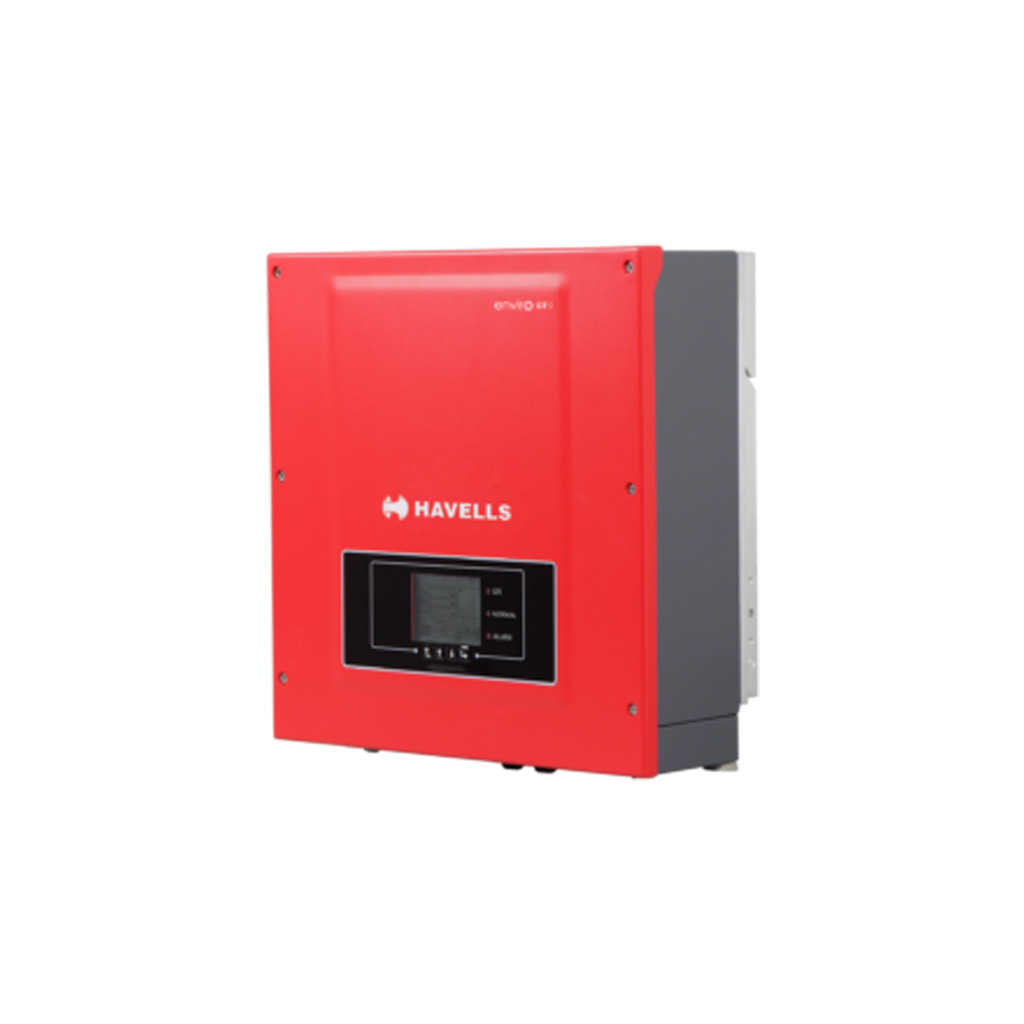

Havells Enviro GTi 20000TD - 20 KW Three Phase On-Grid Inverter

Brand: Havells | Category: Inverter

₹ 111300

Approx Price including GST @ 5%

Available on Request
Product Details

• 7 years warranty
• Single and Dual MPPT for optimum generation
• Wide Input Voltage Range
• Maximum 98.2% Inverter Efficiency
• In-Built 25 Year Data Storage Capability
• Remote Monitoring – free for 25 years
• 10.16 cm (4”) LCD display
• Detachable cover for easy installation & maintenance
• Safety Protection- Anti islanding, Ground Fault monitoring
• Anti Reverse Power Controller - zero export (Optional)
• IEC Certification - As per MNRE

Input (DC)

Model Enviro GTi 20000TD
Max. Input power 26000 W
Max. DC power for single MPPT 13000 W
Number of independent MPPT 2
Number of DC inputs 2 for each MPPT
Max. input voltage 1100 V
Start-up input voltage 250 V (+/-1 V)
Rated input voltage 620 V
MPPT voltage range 230 V - 960 V
Full load DC voltage range 480 V - 850 V
Max. input current per MPPT 24 A / 24 A
Input short circuit current for each Mppt 27 A

Output (AC)

Rated Power 20000 W
Max. AC Power 22000 VA
Max. AC Output Current 32 A
Nominal Grid Voltage 3/N/PE, 230/400 Vac
Grid Voltage Range 310~480 Vac
Nominal Frequency 50 / 60 Hz
Grid Frequency Range 45~55 Hz (According to local standard)
Active power adjustable range 0~100%
THDi <3%
Power factor 1 ( adjustable +/-0.8)
Power Limit export Zero export or adjustable power limit export

Performance

Max. efficiency 98.2%
Weighted eff. (EU/CEC) 98%
Self-consumption at night <1 W
Feed-in start power 50 W
MPPT efficiency >99.9%

Protection

DC Reverse Polarity Protection Yes
DC Switch Yes
Protection class/overvoltage catagory I/III
Input / output MOV (III) Optional
Safety protection Anti islanding, RCMU, Ground fault monitoring
Certification IEC 62116, IEC 61727, IEC 61683, IEC 60068 (1,2,14,30), IEC 62109-1/2, IEC 61000.
SPD MOV : Type III standard

Communication

Power management unit According to certification and request
Standard Communication Mode RS485,WiFi/GPRS (optional), SD card
Operation Data Storage 25 years

General Data

Ambient temperature range -25° C~+60° C
Topology Transformerless
Degree of protection IP65
Allowable relative humidity range 0....100 % no condensing
Max. operating altitude 2000 m
Noise <30dB
Weight 37 kg
Cooling Natural
Dimension 666 mm x 512 mm x 254 mm
Display LCD display
Warranty 7 years
