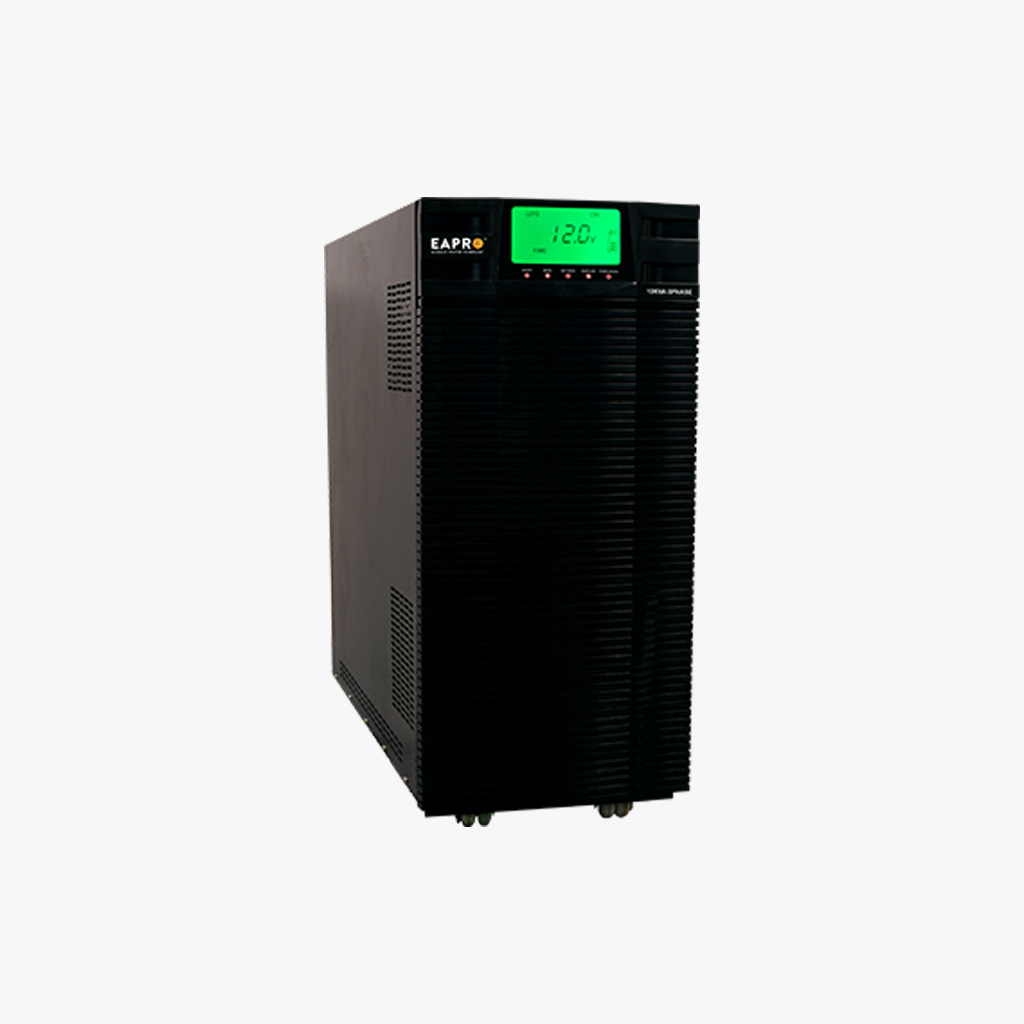

EAPRO 10 KVA/180V 3 Phase Solar Hybrid PCU

SKU: 3688

Special Price ₹ 97,078.00


Approx Price including GST @ 18%

Available on Request




Product Description


  • Rated AC Power - 10000 VA
  • Output Voltage- 400V ± 2 % 3 phase
  • Full load Output Current- 11.6 A per phase
  • Max Supported Panel Power - [70.0 Amp x (Specified Vdc x 1.5)] Wp,
  • Input Voltage Range (Vmp) - 225 V TO 255 V
  • Max Input Voltage Range (Voc) - 300 V
  • Charge Controller –PWM
  • Nominal Battery Bank Voltage – 180V (Support 15 Batteries)
  • 24 Months Warranty.
  • Provision for setting of critical parameters as per user requirement like Time, Boost Battery Voltage, Solar Max charging current, Battery Low Cut voltage etc.
  • Efficient Current Charging at Low Mains in Normal Mode only.
  • Intelligent Battery Charging and Charge Sharing with Mains/Charging by solar power only.
  • Dual Charging current option for Normal Charging and High Charging.
  • High Power new generation MOSFET/IGBT capable of handling high inrush/surge current.
  • Intelligent Multicolour LCD display for all system parameters.
  • Display Load Sharing from Solar
  • Inbuilt fully regulated charge controller.
Capacity (VA) 10000 VA
Nominal battery voltage (Vdc) 180V
Output voltage 400 V ± 2% 3 phase
Full load output current 11.6 A per phase
Charge Controller Type PWM
Charge Controller Rating 70 A
Maximum PV Power in input [70.0 Amp x (Specified Vdc x 1.5)] Wp
Efficiency above 90 %
Dimensions (L*W*H) [in mm] 845x390x935
Input Voltage Range (Vmp) 225V TO 255 V
Input Voltage Range (Voc) 300 V
